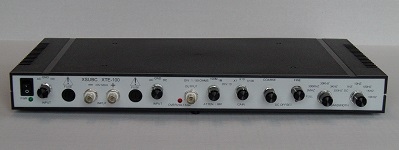

A New Way To Look At Differential Amplifiers Introducing the XTE-100

SPECIFICATIONS INPUT Impedance: 50 ohms or 1M || 20pF or 100M || 20pF Coupling: AC - GND - DC AC Coupling: 0.1uF CMRR: 50,000:1 or more RTI (DC to 10kHz) Common Mode Range: 10V (x10, x100), 40V (x1) Differential Range: 10V (x1), 1V (x10), 0.1V (x100) Maximum Input Voltage: 40VACrms FILTERS/BANDWIDTH LIMITS LF: DC, 1Hz, 10Hz, 100Hz, 1kHz, 10kHz HF: Full (3 to 5MHz), 3MHz, 300kHz, 30kHz, 3kHz, 300Hz OUTPUT Noise: <30uVrms for x1 Gain RTI (100Hz to 10kHz) Minimum DC Offset: +/-1V (x10, x100), +/-10V (x1) GENERAL Operating Temperature (degrees C): +10 to +40 Enclosure: Benchtop or Rackmount Dimensions (inches): 16.7 x 1.75 x 8 (W x H x D) Contact our Sales department through the "Contact Us" link to the left for price and availability.
